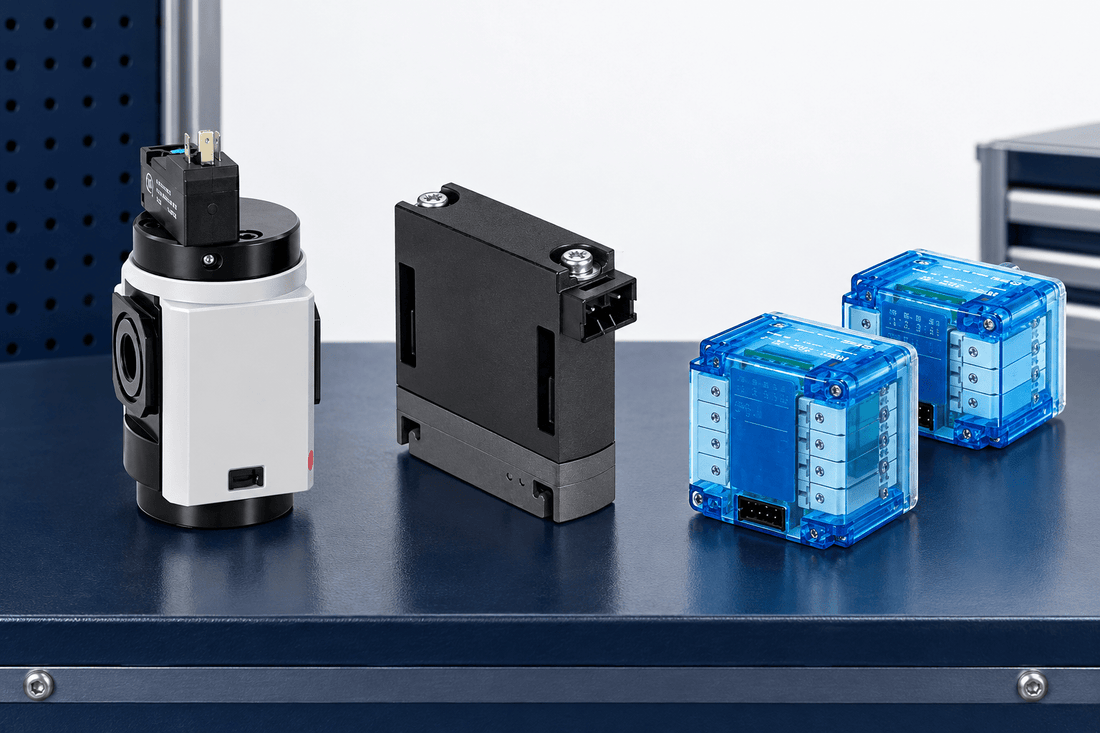

Pneumatic directional control valves are the decision-makers of any pneumatic circuit — they determine when and where air flows, controlling the movement of cylinders, rotary actuators, and other devices. With dozens of valve types, port configurations, and actuation methods available, choosing the right valve is critical to system reliability and performance.
This guide explains the key parameters and helps you select the right valve for your application.
1. Understanding Valve Notation: Ways and Positions
Pneumatic valves are described by the number of ports (ways) and positions they have, written as X/Y (ways/positions).
- 2/2 valve — 2 ports, 2 positions. Simple on/off. Used to isolate or supply a single line.
- 3/2 valve — 3 ports, 2 positions. Supplies pressure in one position, exhausts in the other. Used to extend a single-acting cylinder or pilot a larger valve.
- 4/2 valve — 4 ports, 2 positions. Controls a double-acting cylinder; switches between extend and retract but has no mid-position.
- 5/2 valve — 5 ports, 2 positions. The most common valve for double-acting cylinders. Two separate exhaust ports allow independent flow control on each stroke.
- 5/3 valve — 5 ports, 3 positions. Adds a centre position (all ports blocked, all ports exhausted, or pressure to both cylinder ports). Used where mid-stroke stopping or floating is required.
Rule of thumb: Use a 3/2 for single-acting cylinders and a 5/2 or 5/3 for double-acting cylinders.
2. Actuation Method
How the valve is switched determines its suitability for your control system:
- Solenoid (electrically operated) — The most common type for automated systems. A coil energises to shift the spool. Available in AC (110V, 230V) and DC (12V, 24V) voltages. 24V DC is the standard for modern PLC-controlled systems.
- Pneumatic pilot — A pilot air signal shifts the spool. Used where electrical signals are not available or in ATEX hazardous areas.
- Mechanical (lever, roller, plunger) — Operated by physical contact with a moving part. Used as limit switches or safety interlocks.
- Manual override — Most solenoid valves include a manual override button for commissioning and fault-finding. Confirm this is accessible in your installation.
3. Single vs Double Solenoid
This is one of the most important decisions for safety-critical applications:
- Single solenoid (spring return) — One solenoid shifts the valve; a spring returns it to the default position when de-energised. The cylinder returns to its safe position on power loss. Use this where a defined fail-safe position is required.
- Double solenoid (detented) — Two solenoids, one for each position. The valve stays in its last position on power loss — it has memory. Use this where the cylinder must hold its position during a power interruption (e.g., clamping, pressing).
Safety note: Always define the fail-safe position for your application before selecting single or double solenoid.
4. Flow Rate and Valve Sizing
An undersized valve restricts flow, causing slow cylinder speeds and pressure drop. Valve flow capacity is expressed as:
- Cv (flow coefficient, US standard)
- Kv (flow coefficient, metric)
- Sonic conductance C and critical pressure ratio b (ISO 6358 — the most accurate method for pneumatics)
To size a valve, calculate the required flow rate for your cylinder at the desired speed, then select a valve whose rated flow exceeds this at your working pressure. Manufacturers publish flow curves — always check these rather than relying on port size alone.
5. Valve Body Style: Individual vs Manifold
- Individual (sub-base or inline) valves — Each valve has its own body and connections. Flexible for small numbers of valves or where valves are distributed around the machine.
- Manifold-mounted valves — Multiple valves share a common manifold with a single air supply and exhaust connection. Reduces pipework, saves space, and simplifies wiring. Ideal for valve islands in control panels.
- Valve islands / fieldbus valves — Manifold valves with integrated electronics (DeviceNet, Profibus, EtherNet/IP, IO-Link). Reduces wiring to a single fieldbus cable. Norgren, Festo, and SMC all offer comprehensive valve island ranges.
6. Response Time and Frequency
For high-speed or high-cycle applications, check the valve's:
- Switching time — Typically 10–50 ms for standard solenoid valves. High-speed valves can switch in <5 ms.
- Cycle life — Standard valves are rated for 50–100 million cycles. Confirm this against your expected duty cycle.
- Coil duty rating — Continuous duty (100%) coils can remain energised indefinitely. Intermittent duty coils must not be held energised for extended periods without overheating.
7. Environmental and Certification Considerations
- IP rating — IP65 is standard for most industrial environments (dust-tight, protected against water jets). Washdown applications may require IP67 or IP69K.
- ATEX — For hazardous areas with flammable gases or dust, specify ATEX-certified valves with the appropriate category and gas group.
- Temperature range — Standard valves operate from −10°C to +50°C. Extended-range versions are available for cold stores or high-temperature environments.
Valve Selection Checklist
- ☐ Number of ways and positions determined (3/2, 5/2, 5/3)?
- ☐ Single or double-acting actuator?
- ☐ Fail-safe position defined?
- ☐ Actuation method selected (solenoid, pilot, mechanical)?
- ☐ Solenoid voltage confirmed (24V DC, 230V AC, etc.)?
- ☐ Flow rate calculated and valve Cv/Kv checked?
- ☐ Individual or manifold mounting?
- ☐ IP rating suitable for environment?
- ☐ ATEX certification required?
- ☐ Cycle life and coil duty rating confirmed?
