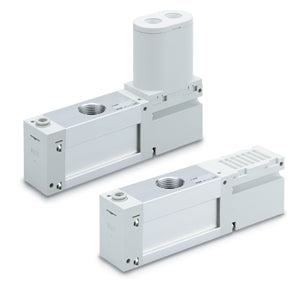

ZL3H06-EBG, ZL3/ZL6, Multi-stage Generator
ZL3H06-EBG, ZL3/ZL6, Multi-stage Generator
Price (Excl. VAT): £514.89
Price (Incl. VAT): £617.87
Couldn't load pickup availability
Energy-saving, large flow rate, 3-stage diffuser construction ejector
Energy saving function selectable, with reduction of up to 90%
Suction flow rate up to 600 l/min, increased by 250% compared to one-stage ejectors
Supply valve/release valve combinations
Exhaust specifications: built-in silencer (standard), port exhaust
Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter
All-in-one design with integrated components to make it compact and lightweight., Max. Suction Flow Rate: 3 [300 L/min (ANR)]
Supply Pressure: H (0.50 MPa)
Vacuum (2/V) Port Size/Supply (1/P) Port Tubing O.D: 06 [Vacuum: Rc3/4; Supply: 8 (Metric)]
Exhaust Method: Silencer Exhaust
Supply Valve/Release Valve Combination: w/o Valve
Rated voltage: None
Electrical Entry: None
Light/Surge Voltage Supprressor: None
Manual Override: Non-locking Push Type
Vacuum Pressure Sensor: E (Vacuum Pressure Switch, Vacuum 2 Outputs)
Output: B (PNP Open Collector)
Unit: w/Unit Switching Function
Lead Wire: G (Lead Wire w/Connector; Length: 2 m; Included)
Option: None
