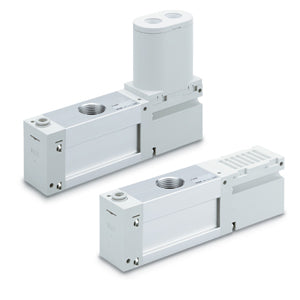

ZL3H06-K15LOZ, ZL3/ZL6, Multi-stage Generator
ZL3H06-K15LOZ, ZL3/ZL6, Multi-stage Generator
Price (Excl. VAT): £559.12
Price (Incl. VAT): £670.94
Couldn't load pickup availability
Energy-saving, large flow rate, 3-stage diffuser construction ejector
Energy saving function selectable, with reduction of up to 90%
Suction flow rate up to 600 l/min, increased by 250% compared to one-stage ejectors
Supply valve/release valve combinations
Exhaust specifications: built-in silencer (standard), port exhaust
Vacuum pressure sensor options: digital vacuum pressure switch, vacuum pressure gauge, vacuum adapter
All-in-one design with integrated components to make it compact and lightweight., Vacuum (2/V) Port Size/Supply (1/P) Port Tubing O.D: 06 [Vacuum: Rc3/4; Supply: 8 (Metric)]
Supply Pressure: H (0.50 MPa)
Light/Surge Voltage Supprressor: Z (w/light surge voltage suppressor)
Max. Suction Flow Rate: 3 [300 L/min (ANR)]
Supply Valve/Release Valve Combination: K1 [Supply Valve (N.C.), Release Valve (N.C.)]
Vacuum Pressure Sensor: None
Unit: w/Unit Switching Function
Manual Override: Non-locking Push Type
Electrical Entry: LO (L Plug Vertical Connector w/o Connector)
Rated voltage: 5 (24 VDC)
Output: None
Exhaust Method: Silencer Exhaust
Option: None
Lead Wire: w/o Lead Wire with Connector
