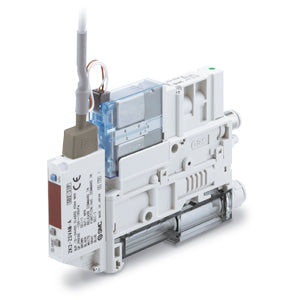

ZK2H15K5NL3A-08, ZK2*A, Vacuum Unit, Ejector System for Manifold

Advanced vacuum unit (ejector/pump/manifold systems) with low noise and high efficiency options.
Energy saving digital vacuum switch: Intermittent energising (supply/exhaust) only when vacuum decreases.
More efficient 2-stage ejector: Air consumption 30% reduced.
Dual 2 port valve (release valve/supply valve): Can hold vacuum even when the power goes out or is turned off. Prevents the sudden dropping of workpieces.
All-in-one design with integrated components to make it compact and lightweight.
Control and monitor up to 32 outputs via a wide variety of serial interface communication protocols
EX260 Compatible protocols: IO-Link, DeviceNet, PROFIBUS DP, CC-Link, EtherNet/IPâ„¢, EtherCAT, PROFINET, Ethernet POWERLINK
EX500 Compatible protocols: Getaway decentralised system
EX600 Compatible protocols: DeviceNet, PROFIBUS DP, CC-Link, EtherNet/IPâ„¢, EtherCAT, PROFINET, wireless, compatible wireless base.
Retrofitting of vacuum sensor and manifold rail mounting bracket allowed., Body type: H (For Manifold - High-noise Reduction Silencer Exhaust)
Nominal Nozzle Size: 15 (ø1.5)
Supply Valve / Release Valve: K (N.C. / N.C.)
Rated Voltage: 5 (24 VDC)
Pressure Sensor/Digital Pressure Switch for Vacuum Spec.: N (Without Pressure Sensor / Digital Pressure Switch for Vacuum)
Supply Valve/Release Valve/Digital Pressure Switch for Vacuum Connector Spec.: L3 [L-type Plug Connector - w/o Lead Wire with Connector - w/o Lead Wire with Connector for Pressure Switch/sensor]
Vacuum (V) Port: 08 [ø8 One-touch Fitting (Metric)]
Screwdriver Operation Type Long Lock Nut: None
Vacuum Break Flow Adjustment: None
Manifold Individual Supply: None
Manifold Common Release Pressure Supply: None
Exhaust Interference Prevention Valve: None
